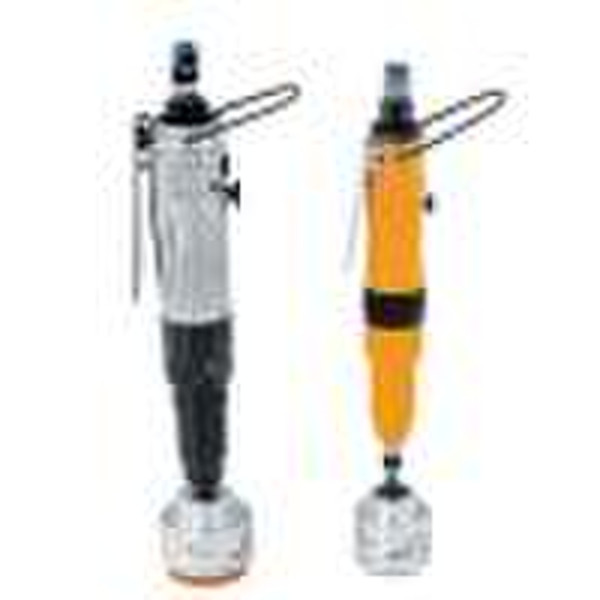

Manual Capping Machine

The Manual Cappers are portable, hand-held, cap tighteners that can be used to tighten or to remove screw and lug type caps. Both models of the manual capper have adjustable clutches that eliminate cap damage and reduce insert wear. Once the cap is fully tightened, the chuck will stop spinning automatically, signaling you to move on to the next bottle. When combined with the self-balancer and stand, the manual capper can be mounted overhead, which can dramatically reduce fatigue associated with repetitive use. All manual cappers come complete with: a main body, a chuck and an insert. Options include: A stand, a balancer, customized chucks and inserts for use with special caps. Technical Specifications: Model SDcapper LD (Light Duty ) SDcapper HD (Heavy Duty) Cap Dia. 5 30mm 5 90mm Speed About 30cpm. About 30cpm. DimensionsΦ33mm×L270mmΦ40mm×L310mm Stand Size L1350mm×H1350mmL1350mm×H1350mm Main Body Weight 0.6kg 1.1kg Air Pressure between 4.5kg/cm2 and 6.2kg/cm2 between 4.5kg/cm2 and 6.2kg/cm2 Air Consumption 0.08m3/min 0.08m3/min Quick Connection Clip M8M8 Clutch 6 grades of adjustable torque 12 grades of adjustable torque
